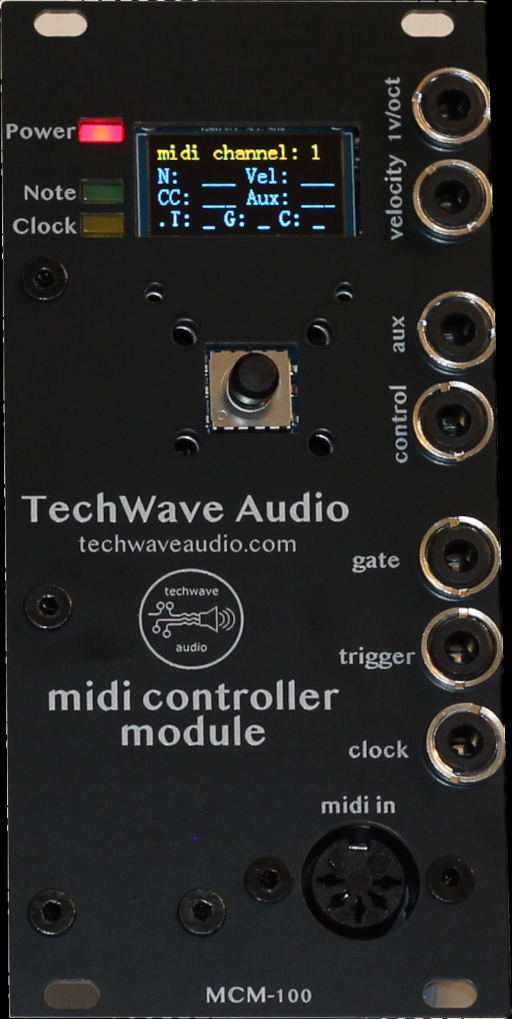

Midi Controller Module (early version)
TechWave Audio
Midi Controller Module (early version)
Model: MCM-100-EV
Limited stock! Once the early version modules are gone, they're gone...
This early version module may look different from the current production modules but has the same functionality and quality of production units. The module may have some light blemishes and may use some different components than the production run. The module is fully tested and calibrated, and loaded with the latest version of the firmware before going out the door.
The TechWave Audio Midi Controller Module is a feature-rich and customizable monophonic MIDI input for your Eurorack setup.
This 12hp wide module is designed to allow you to plug in your MIDI input and get going quickly. Designed for simplicity and ease of use, it features a 1v/octave note output, velocity CV output, and assignable aux and control CV outputs. There are also full gate (note on), trigger (note start), and MIDI clock sync +5v pulse outputs.
Features
- Single or omni MIDI channel input
- Four CV outputs for note (1v/oct), velocity, aux and control selectable 0 to +10v or 0 to +5v
- 1v/octave through 10 octaves (at 0 to +10v), or 5 octaves (at 0 to +5v)
- Gate, trigger, and clock full 0 to +5v pulse outputs
- Selectable note priority (last, highest, lowest)
- Tuneable pitch and velocity adjust
- Customizable trigger output duration pulse width
- Pitch bend response range from 0 to 5 octaves
- Full display of output states
- Built in tuning and calibration setup
- Designed to fit in 12hp, 3U module
- Power Draw:
- +5v: 70mA
- +12v: 20mA
- -12v: 15mA
Full product details at https://techwaveaudio.com/midi-controller-module/
